Performance & Specifications – 1962 Piper Cherokee PA-28-160 N5495W

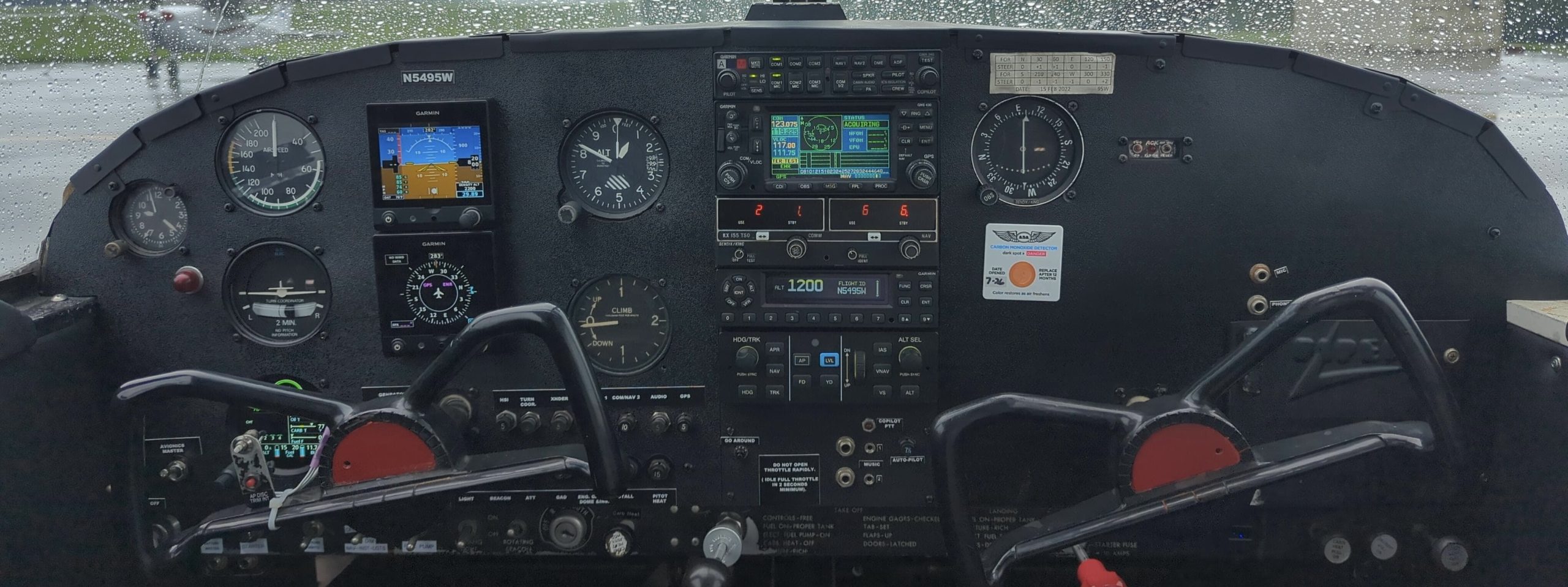

Avionics:
Dual Garmin G5 Attitude Indicator and Directional Gyro
Garmin GNS430W
Bendix/King KX-155
Garmin GTX-345 TransponderGarmin GFC 500 2 Axis Autopilot
Horsepower at 2,700 RPM 160 HP
Engine Lycoming O-320-D2A
Fuel Capacity (Usable) 50 US. GAL.
Fuel Burn @ 75% power 9 GPH
Maximum Take-Off Weight 2,200 lbs
Propeller Sensenich, 2-Bladed Fixed Pitch
Seating 4
Key Airspeeds:
Best Glide 75 MPH
Vy 85 MPH
Vx 74 MPH
Va @ 2,200 lbs 115 MPH
Interior Dimensions – Cabin
Length 88 in
Height 48 in
Width 41 in
Exterior Dimensions – Overall
Length 23 ft 4 in
Height 7 ft 4 in
Wing Span 30 ft
Piper PA-28 Pilot Operating Handbook
