Performance & Specifications – 1999 Cessna Skyhawk 172S N2663X

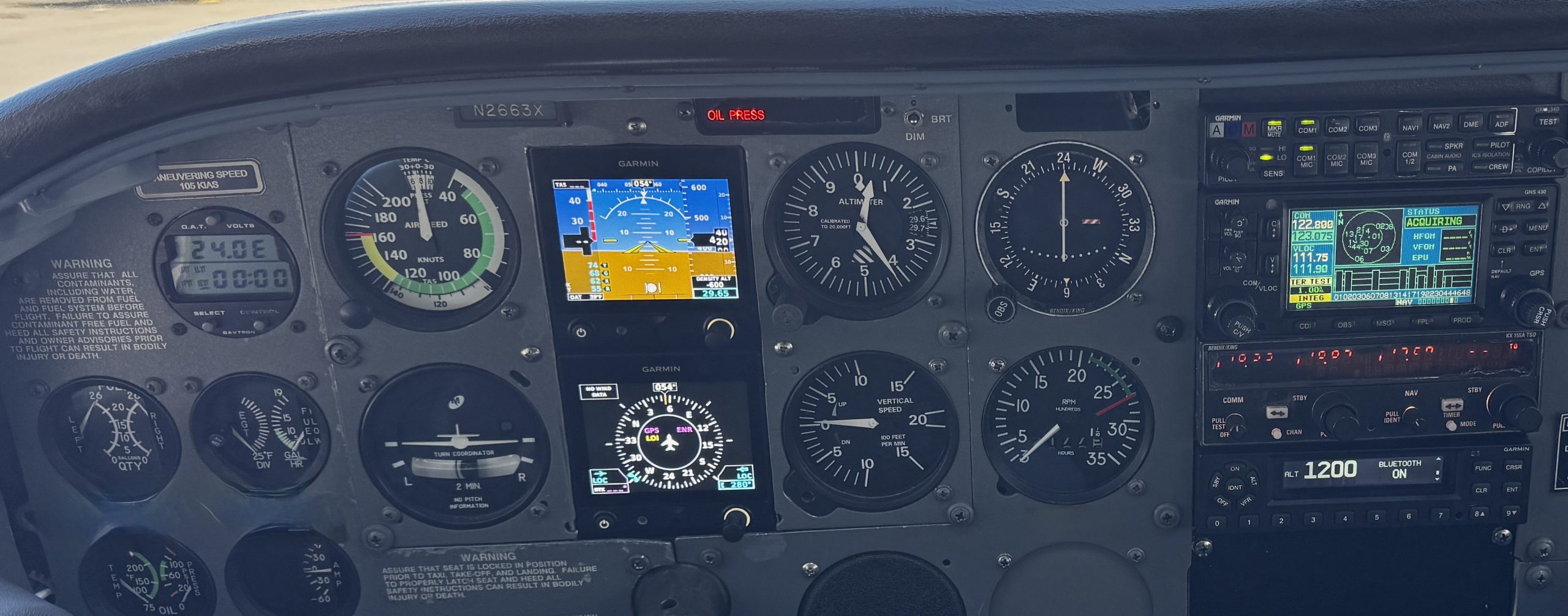

Avionics:
Garmin GMA-340 Audio Panel
Garmin GNS-430 WAAS IFR approved GPS
Bendix/King KX155A Nav/Comm transceiver
Garmin GTX-345 Transponder
Engine Textron Lycoming, normally aspirated, direct drive, air cooled, horizontally opposed, fuel injected, four cylinder engine IO-360 cu.in. displacement
Fuel Capacity (Usable) 53 US. GAL.
Fuel Burn @ 75% power 10.2 GPH
Empty Weight 1657 lbs @ ARM 39.79″
Useful Load 792.7 lbs
Maximum Take-Off Weight 2,550 lbs
Propeller McCauley, 2-Bladed Fixed Pitch
Seating 4
Key Airspeeds:
Best Glide 68 KIAS
Vy 79 KIAS
Vx 60 KIAS
Va @ 2,550 lbs 105 KIAS
Interior Dimensions Cabin
Length 125.5 in
Height 48 in
Width 37 in
Exterior Dimensions Overall
Length 27 ft 2 in
Height 8 ft 11 in
Wing Span 36 ft 1 in
