N239SP
Performance & Specifications – 1999 Cessna Skyhawk 172SP N239SP

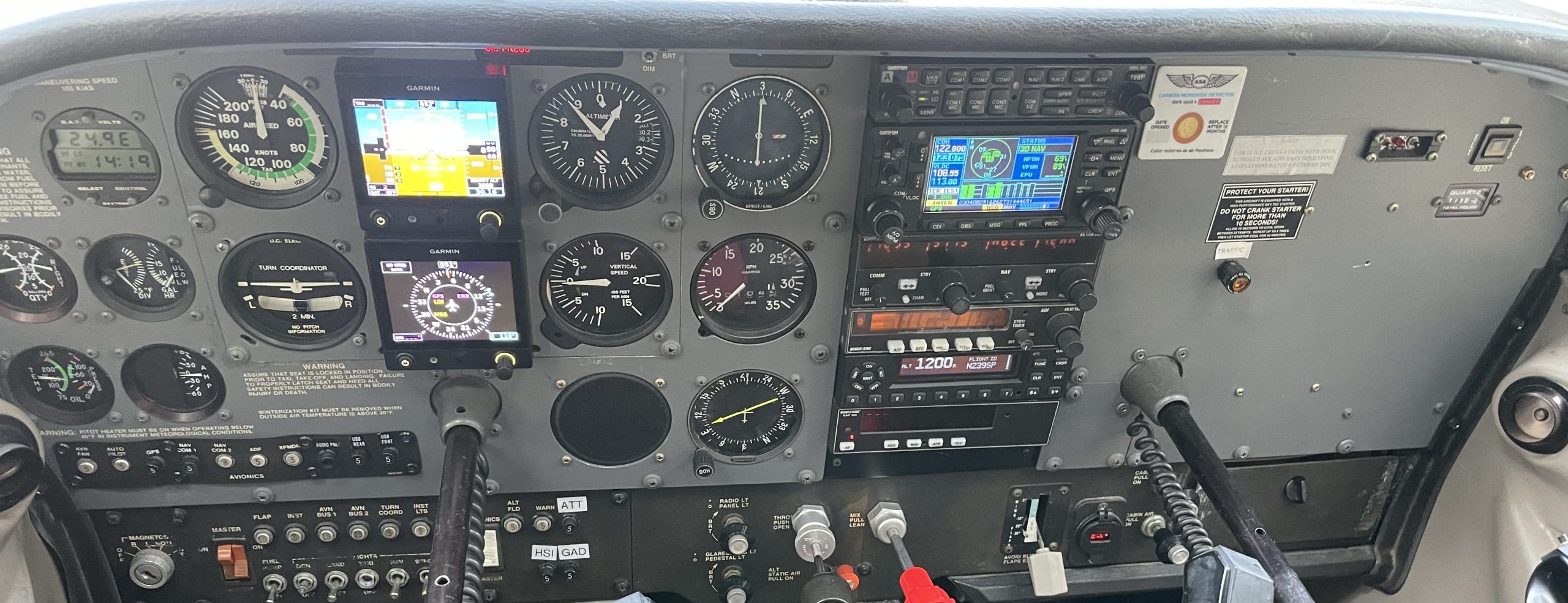

Avionics:
Garmin G5 Attitude Indicator and Horizontal Situation Indicator
Garmin GMA-340 Audio Panel
Garmin GNS-430 WAAS IFR approved GPS
Bendix/King KX155A Nav/Comm transceiver
Bendix/King KR 87 Digital Automatic Direction Finder (ADF)
Garmin GTX-345 Transponder
Bendix/King KAP 140 2 Axis Autopilot
Horsepower at 2,700 RPM 180 HP
Engine Textron Lycoming IO-360-L2A
Fuel Capacity (Usable) 53 US. GAL.
Fuel Burn @ 75% power 10.2 GPH
Maximum Take-Off Weight 2,550 lbs
Propeller McCauley, 2-Bladed Fixed Pitch
Seating 4
Key Airspeeds:
Best Glide 68 KIAS
Vy 74 KIAS
Vx 62 KIAS
Va @ 2,550 lbs 105 KIAS
Interior Dimensions – Cabin
Length 142 in
Height 48 in
Width 39.5 in
Exterior Dimensions – Overall
Length 26 ft 11 in
Height 8 ft 11 in
Wing Span 36 ft 1 in
172SP Pilot Operating Handbook
Garmin GNS-430W GPS/Nav/Comm Quick reference
